J. F. Lawrence, A. M. Hastings, M. J. Dallwitz, T. A. Paine and E. J. Zurcher

Psepheninae PSEPHENIDAE

Classification. Polyphaga: Elateriformia.

Distribution. Psepheninae occur from North America south to Brazil and in Asia.

Biogeographic regions: Nearctic, Palearctic, Neotropical, Oriental.

Biology. Larval Psephenidae cling to rocks in fast-moving streams and graze on algae; their flattened, disk-like shape has earned them the name "water pennies". Adults, which are short-lived, occur on stream-side vegetation and may be attracted to lights at night.

References

Hinton, H. E. 1939. An inquiry into the natural classification of the Dryopoidea, based partly on a study of their internal anatomy. Transactions of the Royal Entomological Society of London, 87: 133–184,

Hinton, H. E. 1966. Respiratory adaptations of the pupae of beetles of the family Psephenidae. Philosophical Transactions of the Royal Society of London 251: 211–245.

Lee, C.-F. And M. A. Jäch 1995. Psephenidae: 1. Check list of the Psephenidae of China, pp. 350–354. IN: M. A. Jäch and L. Ji (eds.), Water Beetles of China. Vol. I. Zoologisch-Botanische Gesellschaft in Österreich und Wiener Coleopterologenverein, Vienna.

Shepard, W. 2000. 52. Psephenidae. IN: R. H. Arnett, Jr., Jr. and M. C. Thomas (eds.), American Beetles. CRC Press, Gainesville, Florida (in press).

Spangler, P. J. and W. E. Steiner 1983. New species of water beetles of the genera Elmoparnus and Pheneps from Suriname (Coleoptera: Dryopidae; Psephenidae). Proceedings of the Entomological Society of Washington 85: 826–839.

Waterhouse, C. O. 1876. On various new genera and species of Coleoptera. Transactions of the Entomological Society of London 1876: 11–25.

Zaitzev, P. 1910. Pars 17. Dryopidae, Cyathoceridae, Georyssidae, Heteroceridae. IN: S. Schenkling (ed.), Coleopterorum Catalogus. W. Junk, Berlin, 68 pp.

General appearance. Total length 3.5–7 mm. Ratio of body length to greatest body width 1.72–1.77. Body strongly flattened. Sides of body not evenly curved. Body not capable of conglobation (rolling into a ball). Upper surfaces of body clothed with distinct hairs, setae or scales. Vestiture of upper surfaces not including stiff, erect, dark bristles; not including scales or scale-like setae. Upper surfaces of body without deep foveae. Prothorax, metathorax and-or abdomen without extrusible glands. Underside of body without hydrofuge surface(s).

Head. Ratio of head length to its greatest width (excluding eyes) 1 or less. Head width just behind eyes not distinctly greater than prothoracic width. Head not or slightly declined, or moderately to strongly declined; not entirely concealed from above by pronotum; without elongate rostrum; not abruptly constricted posteriorly. Temples absent or not closely adpressed to prothorax; absent. Transverse occipital ridge or carina absent. Occiput without stridulatory file. Longitudinal axis of head (from occipital foramen to mouth cavity) inclined at an angle of less than 45 degrees, or inclined at an angle of 45 to 90 degrees. Frontal region not to moderately, gradually declined, or strongly deflexed, vertical or inflexed at apex only, or strongly deflexed, vertical or inflexed from behind eyes. Occipital region without median longitudinal groove or line (endocarina). Frontal region without median groove or line (endocarina). Head without ocelli.

Compound eyes present. Eyes strongly protuberant. Vertical diameter of eye less than 2 times horizontal diameter. Eyes finely facetted; without interfacetal setae. Ommatidium of the exocone type. Eye entire. Anterior or mesal edge of eye not or only barely emarginate. Posterior edge of eye not or barely emarginate.

Antennal insertions exposed from above; moderately to widely separated, or narrowly separated. Antennae not borne on raised tubercles. Subantennal groove or cavity on head absent or very weakly developed. Frontoclypeal suture absent or incomplete. Clypeus not laterally emarginate. Anterior edge of clypeus or clypeolabrum straight to convex, or concave to shallowly emarginate. Mouth cavity anteriorly or anteroventrally oriented, or ventrally or posteroventrally oriented. Pregular area without laterally opening cavities. Head ventrally without paired subgenal ridges. Head without anteriorly-projecting genal processes. Gular sutures widely separated or absent. Corporotentorium narrow, or incomplete or absent; without median process. Cervical sclerites present.

Antennae. Number of antennomeres 11. Antennae when posteriorly extended reaching beyond middle of prothorax but not middle of elytra. Antennae filiform, or serrate. Antennomeres 3, 4 or 5 to 10 without or with single rami (uniramose). Antennae at least partly pubescent or with obvious modifications. Antennal modifications beginning on antennomere 3 (rarely 2). First antennomere (scape) less than 3 times as long as 2nd (pedicel). Antenna not geniculate; without apical club.

Mouthparts. Labrum at least partly visible; free, membranous or separated by suture. Major portion of labrum strongly transverse. Apex of labrum slightly concave or emarginate. Labrum moderately to heavily sclerotized, except at base and-or apex. Mouthparts not forming a piercing or sucking tube. Mandibles present. Mandible short and broad. Mandibular apex moderately to strongly, gradually curved mesally; unidentate, truncate or rounded. Dorsal part of mandible without tubercle; without setose cavity. Mandible enclosed in mouth cavity or not visible in lateral view. Incisor edge of mandible simple. Mandible without mola; without prostheca. Prostheca absent or without articulated, sclerotized process. Maxilla with distinct galea and lacinia. Maxillary lobe(s) not stylet-like. Apex of galea or maxillary lobe without or with few setae or spines; without heavily sclerotized teeth or hooks. Lacinia without hook(s) or spine(s). Apical maxillary palpomere slightly expanded and truncate to subtriangular, or securiform to cultriform; at least as wide as or longer than preapical one. Maxillary palp without complex palp organ. Apical labial palpomere cylindrical to fusiform. Ligula undivided or finely cleft.

Prothorax. Ratio of pronotal length to greatest pronotal width 0.5–0.55. Prothorax widest posteriorly. Sides of prothorax moderately to strongly curved, or straight posteriorly, curved anteriorly. Prothorax not laterally compressed to form cavities for legs. Sides of prothorax not or slightly explanate. Base of prothorax not or slightly narrower than elytral bases. Greatest prothoracic width not or slightly narrower than greatest elytral width. Lateral pronotal carinae complete; simple; visible for their entire lengths from above; without a raised margin, or with a raised margin or narrow bead. Lateral portion of prothorax without deep pit. Pronotum without anterolateral callosities. Anterior angles of pronotum absent or not produced forward; absent, right or rounded, not produced. Posterior angles of pronotum obtuse or right, or moderately to strongly acute; not produced and acute. Posterior edge of pronotum more or less straight or evenly rounded, or moderately to strongly produced forming mesal lobe; simple; not or vaguely margined. Discal carinae of pronotum absent. Pronotal disc without paired basal impressions. Pronotum without median longitudinal groove or line. Hypomeron without pit.

Anterior portion of prosternum at midline shorter than prosternal process. Lateral portion of prosternum in front of coxae shorter than mid length of procoxal cavity. Anterior edge of prosternum not produced anteriorly. Prosternum in front of coxae flat to moderately convex. Prosternum in front of coxae without paired lines or carinae. Anterior edge of prosternum without mesal excavation. Anterolateral or ventrolateral portions of prothorax without cavities or grooves. Prothoracic cavities absent. Prothoracic grooves absent. Prosternal process complete; parallel-sided; flat, concave, or only slightly elevated or curved behind coxae; slightly overlapping mesoventrite. Apex of prosternal process acute or narrowly rounded. Prosternal process without transverse groove. Accessory (mesal) procoxal articulation absent. Ventral portion of prothorax on each side with notosternal suture only. Propleuron not extending to anterior edge of prothorax. Propleuron or pleurotrochantin not extending behind coxa. Procoxae projecting well below prosternum. Procoxa without or with short concealed lateral extension. Procoxal cavity strongly transverse. Procoxal cavities at middle narrowly separated. Procoxal cavities externally open; broadly open. Postcoxal projection absent or very short. Procoxal cavities without narrow lateral extensions. Procoxal cavities internally open. Prothoracic trochantin or pleurotrochantin at least partly exposed. Promesothoracic clicking mechanism absent.

Elytra. Elytra present. Ratio of elytral length to greatest elytral width 1.28–1.38. Ratio of elytral length to pronotal length 2.8–3.6. Elytra apunctate, irregularly punctate, or with 5 or fewer distinct puncture rows or striae; without scutellary striole. Sutural stria absent or not deeply impressed near apex. Abdominal tergites exposed by elytra none or apex of 1. Elytral apices meeting or almost meeting at the suture, or independently rounded or acute and separated by broad gap. Elytral suture not deflected near apex. Elytral apex without internal interlocking tongue. Epipleuron complete; not or gradually narrowed. Lateral edge of elytron straight or weakly sinuate.

Pterothorax. Scutellum well developed; not abruptly elevated; anteriorly simple; posteriorly broadly rounded or obtusely angulate. Mesoscutum without stridulatory file. Mesoventrite with paired procoxal rests. Paired mesoventral procoxal rests moderately to strongly oblique. Anterior edge of mesoventrite without prosternal rest. Mesoventrite at least partly divided by longitudinal groove or discrimen. Anterior edge of mesoventrite at midline on same plane as metaventrite. Mesoventral cavity absent, or small and shallow. Mesocoxa not conical and projecting. Mesocoxal cavities at middle narrowly separated. Mesocoxae separated by less than shortest diameter of coxal cavity. Mesocoxal cavities circular to slightly transverse; not or slightly oblique. Mesoventrite separated by complete sutures from mesepisterna. Mesepisterna distinctly separated at midline; without deep pockets. Mesepimeron not visible from above. Mesocoxal cavities open laterally; not partly closed by metepisterna. Mesoventral process extending at least to middle of mesocoxal cavity. Mesometaventral junction an anteriorly curved, angulate or acute line.

Metaventral discrimen or median line moderately to very long. Paired postcoxal lines of metaventrite absent. Postcoxal lines of metaventrite absent. Metaventrite longer than first abdominal ventrite. Postcoxal pits of metaventrite absent. Metaventrite flat to slightly convex. Transverse groove of metaventrite present. Anterior edge of metaventrite without transverse carina between mesocoxal cavities. Exposed portion of metepisternum moderately elongate. Metacoxae contiguous or narrowly separated; not extending laterally to meet elytra or sides of body; completely separated from metaventrite by suture. Metacoxal plates well developed mesally, weak laterally, or weakly developed; not concealing most of basal abdominal ventrite. Metacoxae not greatly enlarged; horizontally oriented. Lateral arms of metendosternite short or absent. Metendosternal laminae absent. Ventrolateral processes of metendosternite absent or weakly developed. Anterior process of metendosternite moderately long. Anterior tendons of metendosternite moderately or very close together. Apical portion of metendosternite not or only slightly emarginate.

Hind wing. Hind wing well developed; with normal transverse folds. Radial cell of hind wing well developed; elongate. Inner posterior angle formed at base of radial cell right or obtuse. Radial cell not forming equilateral triangle. Ratio of length of apical area to total wing length 0.20–0.35. Medial bar of hind wing not crossed by fold. Free veins in medial area of hind wing 4, or 3 or fewer. Oblongum cell of hind wing absent. Medial fleck of hind wing present; absent or not partly bisected by a vein. Wedge cell of hind wing absent. Anal lobe of hind wing absent. Posterior edge of hind wing without fringe of long hairs.

Legs. Femoral attachment of mid trochanter strongly oblique with base of femur separate from coxa. Mesotrochanter not reduced or concealed from below. Metafemur not much wider than mesofemur. Mesotibia not strongly widened. Outer edge of mesotibia simple, crenulate or denticulate. Outer subapical edge of mesotibia without antenna cleaner. Preapical surfaces of mesotibia without ridges or combs. Outer apical angle of mesotibia simple or slightly produced, without lobe, teeth or spines. Mesotibial spurs glabrous or absent. Mesotarsus with 5 distinct tarsomeres (pentamerous). Tarsomeres on hind leg at least as many as on mid leg. Tarsomeres on fore leg at least as many as on mid leg. Mesotarsomere 1 well developed and visible. Preapical mesotarsomeres together longer than apical one. Penultimate mesotarsomere not distinctly shorter than antepenultimate. Ventral mesotarsal lobes absent. Mesotarsal claws paired; subequal in length and similar in form and angle of inclination; simple. Appendage on each tarsal claw absent. Mesotarsal claws without setae near base. Mesotarsal empodium absent or with 2 or fewer setae. Inner subapical edge of protibia without antenna cleaner. Hind legs without swimming hairs. Preapical surfaces of metatibia without ridges or combs.

Abdomen. Number of abdominal ventrites 5, or 6. Number of basal ventrites connate three. Abdominal sternite 2 apparently absent. First ventrite not completely divided by metacoxae. Suture between ventrites 1 and 2 distinct. Suture between ventrites 2 and 3 distinct. Ventrite 4 articulated with or connate with both 3 and 5. Postcoxal lines on ventrite 1 absent. Ventrite 1 not much longer than 2. Abdominal process absent. Ventrite 5 in female without circular depression. Posterior edge of ventrite 5 not crenulate. Last visible tergite and-or sternite (7 or 8) not forming terminal spine. Subapical abdominal luminous organ absent. Ventrites without setose patches or foveae. Functional spiracles on abdominal segment 8 absent. Anterior edge of sternite 8 in male without median strut. Anterior edge of sternite 9 in male without median strut. Tergite 9 in male truncate, or completely fused to tergite 10. Tergite 10 in male well developed and free, or partly fused to tergite 9.

Aedeagus trilobate; symmetrical. Anterior edge of tegmen or phallobase without struts. Parameres individually articulated to phallobase or base of penis; not outwardly hooked. Penis with dorsal and ventral lobes. Anterior edge of penis without struts.

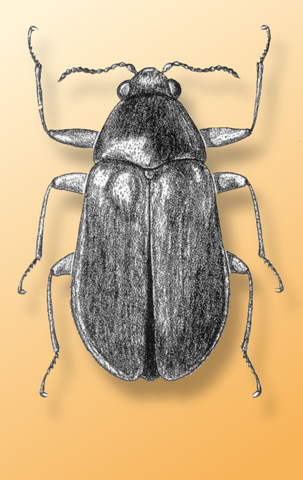

Illustrations. • Psephenus. Psephenus lecontei (LeConte). Locality: North America. Artist: E. Van Tassell. Courtesy of Dr. Ross Arnett. Reference: Arnett 1963.


The interactive key provides access to the character list, illustrations, full and partial descriptions, diagnostic descriptions, differences and similarities between taxa, lists of taxa exhibiting specified attributes, and summaries of attributes within groups of taxa.

Cite this publication as: ‘Lawrence, J.F., Hastings, A.M., Dallwitz, M.J., Paine, T.A., and Zurcher, E.J. 2000 onwards. Elateriformia (Coleoptera): descriptions, illustrations, identification, and information retrieval for families and subfamilies. Version: 9th October 2005. http://delta-intkey.com’.
