Mastogeniini Buprestinae BUPRESTIDAE

Classification. Polyphaga: Elateriformia.

Distribution. Mastogeniine Buprestidae occur throughout the New World from the eastern and southwestern United States to Chile, in the eastern Palaearctic and Oriental regions through the East Indies and New Guinea to Fiji and Australia, and in Asia Minor, South Africa and Madagascar.

Biogeographic regions: Nearctic, Palearctic, Neotropical, Afrotropical, Oriental, Australian.

Biology. Little is known about the biology or immature stages of Mastogeniini; however a North American Mastogenius has been reported to breed in "small branches of oak" (Baker 1972).

Notes. Data at least partly checked by C. L. Bellamy.

References

Baker, W. L. 1972. Eastern Forest Insects. U. S. Department of Agriculture (Miscellaneous Publications No. 1175), Washington, D. C., 642 pp.

Bellamy, C. L. 1986. The higher classification of Australian Buprestidae, with the description of a new genus and species (Coleoptera). Australian Journal of Zoology 34: 583–600.

Bellamy, C. L. 1991. Studies in the Mastogeniinae (Coleoptera: Buprestidae) III. New species, combinations and a world catalogue. Giornale Italiano di Entomologia 5: 109–128.

Bellamy, C. L. and G. H. Nelson 2000. 45. Buprestidae. IN: R. H. Arnett, Jr., Jr. and M. C. Thomas (eds.), American Beetles. CRC Press, Gainesville, Florida (in press).

Forbes, W. T. M. 1942. The wing of Mastogenius (Coleoptera). Journal of the New York Entomological Society 50: 193–194.

Holynski, R. B. 1984. On the Oriental and Notogaean Mastogeniini Le C. Horn (Coleoptera: Buprestidae). Polskie Pismo Entomologiczne 54: 105–114.

Holynski, R. B. 1988. Remarks on the general classification of Buprestidae Leach as applied to Maoraxiina Hol. Folia Entomologica Hungarica 49: 49–54.

Holynski, R. B. 1993. A reassessment of the internal classification of the Buprestidae Leach (Coleoptera). Crystal (Publications of the Natural Science Foundation at Göd), Series Zoologica 1: 1–42.

Kerremans, C. 1893. Essai de groupement des Buprestides. Annales de la Société Entomologique de Belgique 37: 95–122.

Kerremans, C. 1902–1903. Coleoptera Fam. Buprestidae. IN: P. Wytsman (ed.), Genera Insectorum. Fascicule 12.Verteneuil and Desmet, Brussels, 338 pp., 4 pls.

Nelson, G. H. 1982. One new tribe and a new genus and species of North American Buprestidae with consideration of subfamilial and tribal categories. Coleopterists Bulletin 35(1981): 431–450.

Obenberger, J. 1937. Pars 157. Buprestidae VI. IN: S. Schenkling (ed.), Coleopterorum Catalogus. W. Junk, Berlin, pp. 1247–1714.

Toyama, M. 1983. The buprestid beetles of the subfamily Mastogeniinae from the Oriental region (Coleoptera: Buprestidae). Entomological Review of Japan 38: 55–64.

Williams, G. A. and T. A. Weir 1987. Four new species and new records of Australian Mastogeniinae (Colepotera: Buprestidae). Journal of the Australian Entomological Society 26: 153–159.

Williams, G. A. and T. A. Weir 1988. Further new species of Australian Mastogeniinae (Coleoptera: Buprestidae). Journal of the Australian Entomological Society 27: 179–181.

General appearance. Total length 2–4.3 mm. Ratio of body length to greatest body width 2.2–2.62. Body strongly flattened, or slightly flattened to moderately convex. Sides of body not evenly curved. Body not capable of conglobation (rolling into a ball). Upper surfaces of body glabrous or subglabrous, or clothed with distinct hairs, setae or scales. Vestiture of upper surfaces not including stiff, erect, dark bristles; not including scales or scale-like setae. Upper surfaces of body without deep foveae. Prothorax, metathorax and-or abdomen without extrusible glands. Underside of body without hydrofuge surface(s).

Head. Ratio of head length to its greatest width (excluding eyes) 1 or less. Head width just behind eyes not distinctly greater than prothoracic width. Head moderately to strongly declined; not entirely concealed from above by pronotum; without elongate rostrum; not abruptly constricted posteriorly. Temples absent or not closely adpressed to prothorax; absent. Transverse occipital ridge or carina absent. Occiput without stridulatory file. Longitudinal axis of head (from occipital foramen to mouth cavity) inclined at an angle of 45 to 90 degrees. Frontal region strongly deflexed, vertical or inflexed from behind eyes. Occipital region with median longitudinal groove or line (endocarina). Frontal region without median groove or line (endocarina). Head without ocelli.

Compound eyes present. Eyes not or only slightly protuberant. Vertical diameter of eye less than 2 times horizontal diameter. Eyes finely facetted; without interfacetal setae. Ommatidium of the eucone type. Eye entire. Anterior or mesal edge of eye not or only barely emarginate. Posterior edge of eye not or barely emarginate.

Antennal insertions exposed from above; narrowly separated. Antennae not borne on raised tubercles. Antennal insertions flush with head capsule or raised, not in fossae. Subantennal groove or cavity on head well developed. Frontoclypeal suture absent or incomplete. Clypeus not laterally emarginate. Anterior edge of clypeus or clypeolabrum straight to convex. Mouth cavity ventrally or posteroventrally oriented. Pregular area without laterally opening cavities. Head ventrally without paired subgenal ridges. Head without anteriorly-projecting genal processes. Gular sutures widely separated or absent. Corporotentorium narrow; without median process. Cervical sclerites present.

Antennae. Number of antennomeres 11. Antennae when posteriorly extended reaching beyond middle of prothorax but not middle of elytra. Antennae serrate. Antennomeres 3, 4 or 5 to 10 without or with single rami (uniramose). Antennae at least partly pubescent or with obvious modifications. Antennal modifications beginning on antennomere 4. First antennomere (scape) less than 3 times as long as 2nd (pedicel). Antenna not geniculate; without apical club.

Mouthparts. Labrum at least partly visible; free, membranous or separated by suture. Major portion of labrum strongly transverse. Apex of labrum subtruncate to slightly convex. Labrum moderately to heavily sclerotized, except at base and-or apex. Mouthparts not forming a piercing or sucking tube. Mandibles present. Mandible short and broad. Mandibular apex moderately to strongly, gradually curved mesally; bidentate or bilobed; subacute, bidentate or multidentate. Dorsal part of mandible without tubercle; without setose cavity. Mandible moderately to strongly, more or less evenly sclerotized or pigmented; visible in lateral view. Incisor edge of mandible simple. Mandible without mola; without prostheca. Prostheca absent or without articulated, sclerotized process. Inner basal angle of mandible without pubescent process. Maxilla with distinct galea and lacinia. Maxillary lobe(s) not stylet-like. Apex of galea or maxillary lobe densely setose or spinose; without heavily sclerotized teeth or hooks. Lacinia without hook(s) or spine(s). Apical maxillary palpomere cylindrical to fusiform; at least as wide as or longer than preapical one. Maxillary palp without complex palp organ. Apical labial palpomere cylindrical to fusiform. Ligula undivided or finely cleft.

Prothorax. Ratio of pronotal length to greatest pronotal width 0.55–0.75. Prothorax widest at middle. Sides of prothorax more or less straight, or moderately to strongly curved, or straight posteriorly, curved anteriorly. Prothorax not laterally compressed to form cavities for legs. Sides of prothorax not or slightly explanate. Base of prothorax not or slightly narrower than elytral bases. Greatest prothoracic width not or slightly narrower than greatest elytral width. Lateral pronotal carinae complete; simple; not visible for their entire length from above; without a raised margin. Lateral portion of prothorax without deep pit. Pronotum without anterolateral callosities. Anterior angles of pronotum distinctly produced forward; produced and narrowly rounded or acute. Posterior angles of pronotum obtuse or right; not produced and acute. Posterior edge of pronotum more or less straight or evenly rounded; distinctly crenulate; not or vaguely margined. Discal carinae of pronotum extending beyond middle of disc. Pronotal disc without paired basal impressions. Pronotum without median longitudinal groove or line. Anterior edge of pronotum simple, without margin. Hypomeron without pit.

Anterior portion of prosternum at midline longer than prosternal process. Lateral portion of prosternum in front of coxae longer than mid length of procoxal cavity. Anterior edge of prosternum not produced anteriorly. Prosternum in front of coxae flat to moderately convex. Prosternum in front of coxae without paired lines or carinae. Anterior edge of prosternum without margin; without mesal excavation. Anterolateral or ventrolateral portions of prothorax without cavities or grooves. Prothoracic cavities absent. Prothoracic grooves absent. Prosternal process complete; parallel-sided; flat, concave, or only slightly elevated or curved behind coxae; concealing most or all of mesoventrite. Apex of prosternal process broadly rounded, angulate or truncate. Prosternal process without transverse groove. Accessory (mesal) procoxal articulation absent. Ventral portion of prothorax on each side with notosternal suture only. Propleuron not extending to anterior edge of prothorax. Propleuron or pleurotrochantin not extending behind coxa. Procoxae not or slightly projecting below prosternum. Procoxa without or with short concealed lateral extension. Procoxal cavity circular or longer than wide. Procoxal cavities at middle moderately to widely separated. Procoxal cavities externally open; broadly open. Postcoxal projection absent or very short. Procoxal cavities without narrow lateral extensions. Procoxal cavities internally open. Prothoracic trochantin or pleurotrochantin at least partly exposed. Promesothoracic clicking mechanism absent.

Elytra. Elytra present. Ratio of elytral length to greatest elytral width 1.66–1.95. Ratio of elytral length to pronotal length 2.65–3.4. Elytra apunctate, irregularly punctate, or with 5 or fewer distinct puncture rows or striae; without scutellary striole. Sutural stria absent or not deeply impressed near apex. Abdominal tergites exposed by elytra none or apex of 1. Elytral apices meeting or almost meeting at the suture. Elytral suture not deflected near apex. Elytral apex without internal interlocking tongue. Epipleuron absent or incomplete; abruptly narrowed or excavated. Lateral edge of elytron straight or weakly sinuate.

Pterothorax. Scutellum well developed; abruptly elevated; anteriorly simple; posteriorly narrowly rounded or acute, or broadly rounded or obtusely angulate. Mesoscutum without stridulatory file. Mesoventrite with paired procoxal rests. Paired mesoventral procoxal rests moderately to strongly oblique. Anterior edge of mesoventrite without prosternal rest. Mesoventrite not divided by longitudinal groove or discrimen. Anterior edge of mesoventrite at midline on different plane than metaventrite. Mesoventral cavity moderately to very large and deep. Mesocoxa not conical and projecting. Mesocoxal cavities at middle moderately to widely separated. Mesocoxae separated by more than shortest diameter of coxal cavity. Mesocoxal cavities circular to slightly transverse; not or slightly oblique. Mesoventrite separated by complete sutures from mesepisterna. Mesepisterna distinctly separated at midline; without deep pockets. Mesepimeron not visible from above. Mesocoxal cavities open laterally; not partly closed by metepisterna. Mesoventral process absent or not extending to middle of mesocoxal cavity. Mesometaventral junction an anteriorly curved, angulate or acute line, or concealed by metaventral process. Mesoventral and metaventral processes at midline separated by gap, groove, or suture. Accessory (mesal) mesocoxal articulation absent.

Metaventral discrimen or median line moderately to very long. Paired postcoxal lines of metaventrite absent. Postcoxal lines of metaventrite absent. Metaventrite longer than first abdominal ventrite. Postcoxal pits of metaventrite absent. Metaventrite flat to slightly convex. Transverse groove of metaventrite present. Anterior edge of metaventrite without transverse carina between mesocoxal cavities. Exposed portion of metepisternum moderately elongate. Metacoxae contiguous or narrowly separated; separated by less than longest coxal diameter; extending laterally to meet elytra or sides of body; completely separated from metaventrite by suture. Metacoxal plates well developed, more or less uniform; not concealing most of basal abdominal ventrite. Metacoxae not greatly enlarged; horizontally oriented. Lateral arms of metendosternite short or absent. Metendosternal laminae absent. Ventrolateral processes of metendosternite absent or weakly developed. Anterior process of metendosternite short or absent. Anterior tendons of metendosternite widely separated but not on lateral arms. Apical portion of metendosternite not or only slightly emarginate.

Hind wing. Hind wing well developed; with normal transverse folds. Radial cell of hind wing highly reduced or absent; incomplete or absent. Ratio of length of apical area to total wing length 0.36–0.5. Apical area of hind wing with one or more vague sclerotizations or pigment patches. Medial bar of hind wing not crossed by fold. Free veins in medial area of hind wing 3 or fewer. Oblongum cell of hind wing absent. Medial fleck of hind wing absent; absent or not partly bisected by a vein. Wedge cell of hind wing absent. Anal lobe of hind wing present. Posterior edge of hind wing without fringe of long hairs.

Legs. Femoral attachment of mid trochanter transverse or slightly oblique. Mesotrochanter not reduced or concealed from below. Metafemur not much wider than mesofemur. Mesotibia not strongly widened. Outer edge of mesotibia simple, crenulate or denticulate. Outer subapical edge of mesotibia without antenna cleaner. Preapical surfaces of mesotibia without ridges or combs. Outer apical angle of mesotibia simple or slightly produced, without lobe, teeth or spines. Inner apical angle of mesotibia not or slightly produced, without tooth. Mesotibial spurs glabrous or absent; double. Mesotarsus with 5 distinct tarsomeres (pentamerous). Tarsomeres on hind leg at least as many as on mid leg. Tarsomeres on fore leg at least as many as on mid leg. Mesotarsomere 1 well developed and visible. Preapical mesotarsomeres together longer than apical one. Penultimate mesotarsomere not distinctly shorter than antepenultimate. Ventral mesotarsal lobes on more than one tarsomere. Mesotarsal claws paired; subequal in length and similar in form and angle of inclination; simple. Appendage on each tarsal claw absent. Mesotarsal claws without setae near base. Mesotarsal empodium absent or concealed; absent or with 2 or fewer setae. Outer edge of protibia simple and rounded to carinate but without lobes or teeth, except at apex. Outer apical angle of protibia simple or slightly produced, without lobe, teeth or spines. Inner subapical edge of protibia without antenna cleaner. Protibial spurs double. Articulations of protibial spurs located in same plane. Hind legs without swimming hairs. Preapical surfaces of metatibia without ridges or combs. Metatibial articular area not to only moderately expanded, narrowly oval or oblique. Metatibial spurs double; subequal in length and form.

Abdomen. Number of abdominal ventrites 5. Number of basal ventrites connate two. Abdominal sternite 2 apparently absent. First ventrite not completely divided by metacoxae. Suture between ventrites 1 and 2 incomplete or vaguely indicated. Suture between ventrites 2 and 3 distinct. Ventrite 4 articulated with or connate with both 3 and 5. Postcoxal lines on ventrite 1 absent. Ventrite 1 much longer than 2. Abdominal process acute or narrowly rounded. Ventrite 5 in female without circular depression. Posterior edge of ventrite 5 not crenulate. Last visible tergite and-or sternite (7 or 8) not forming terminal spine. Tergite and sternite 7 separated by membrane or distinct suture. Subapical abdominal luminous organ absent. Ventrites without setose patches or foveae. Functional spiracles on abdominal segment 8 present. Functional spiracles on abdominal segment 7 present. Functional spiracles on abdominal segment 6 present. Functional spiracles on abdominal segment 5 present. 7th abdominal spiracles located on tergite. 6th abdominal spiracles located in tergite. 5th abdominal spiracles located in tergite. Anterior edge of sternite 8 in male without median strut. Pygidium (sclerotized tergite 7 or 8) more or less horizontal. Anterior edge of sternite 9 in male without median strut. Tergite 9 in male slightly to moderately emarginate. Tergite 10 in male well developed and free (?).

Aedeagus buprestoid; symmetrical. Anterior edge of tegmen or phallobase without struts. Parameres partly or entirely fused together but articulated to phallobase (?); not outwardly hooked. Penis without dorsal and ventral lobes. Anterior edge of penis without struts.

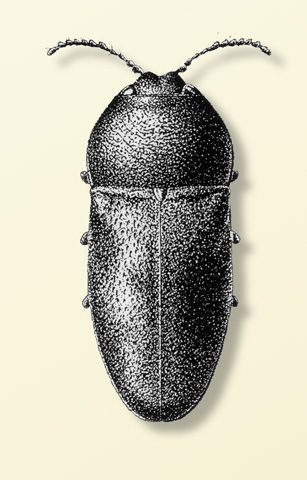

Illustrations. • Helferella. Helferella dianae Cobos. Locality: New Guinea. Reference: Cobos 1957.


The interactive key provides access to the character list, illustrations, full and partial descriptions, diagnostic descriptions, differences and similarities between taxa, lists of taxa exhibiting specified attributes, and summaries of attributes within groups of taxa.

Cite this publication as: ‘Lawrence, J.F., Hastings, A.M., Dallwitz, M.J., Paine, T.A., and Zurcher, E.J. 2000 onwards. Elateriformia (Coleoptera): descriptions, illustrations, identification, and information retrieval for families and subfamilies. Version: 9th October 2005. http://delta-intkey.com’.
