Hydrobius Leach

Adults. Beetles aquatic; walking in water or free-swimming by conventional ambulatory motion of the legs, not diving strongly; moving in the water by alternate, walking leg movements; replenishing air for respiration beneath the elytra indirectly from that acquired and held in a ventral plastron; collecting air at the water surface by exserting one antenna to achieve a continuum of air with the ventral plastron. Beetles 5–8 mm long; body length/maximum body width 1.3–2.55. Beetles somewhat waisted.

Eyes two; not strongly protuberant; without bristles. Mandibles with a well developed mola; with well developed prosthecae. The maxillae with distinct galea and lacinia apically to the palp. The maxillary palps conspicuously elongated, sometimes longer than the antennae. The maxillary palps conspicuously elongated, sometimes longer than the antennae. The apical segment of the maxillary palps cylindrical to fusiform. The apical segment of the labial palps not expanded apically. Antennae very short; not strongly asymmetric; 9 segmented. Antennal scape not swollen. Antennae clubbed. Antennal clubs 3 segmented (the club hairy); preceded by a cupule. Antennal insertions visible from above, or hidden from above.

Prothorax without notopleural sutures. The pronotum not narrowing towards the rear; without five full length longitudinal furrows. Scutellum present. Mid-and hind-legs not as in Gyrinidae (q.v.). The front tibia more or less club-shaped, not or scarcely emarginate near the attachment of the tarsus. Hind coxae not extended laterally to meet the elytra; not shaped posteriorly to receive the femur. The hind coxae not produced behind into flat plates partly concealing the hind femora. Hind coxae without the steep transverse declivity characteristic of Dryopoidea. The inner parts (‘processes’) of the hind coxae not incorporated with the metasternum in a flat, median longitudinal keel. Tarsal segmentation formula 5, 5, 5. Some of the tarsi with a tiny basal segment that is hard to detect, or none of the tarsi with ‘hidden’ segments (?). The front tarsi with as many segments as the mid-tarsi; 5-segmented; apical segment shorter than the rest together. Mid-leg tarsi 5-segmented; pentamerous. Hind tarsi equipped with ‘swimming hairs’. Hind tarsi with the second segment longest, or with the apical and second segments about equal in length; with the second and apical segments almost equal in length. Swimming hairs confined to the tarsi.

Elytra longitudinally striate (8 to 10 each, strongly impressed); each with a well marked sutural stria (these not punctured).

Adults not predacious. In detritus pools of stagnant water.

Larvae. The larvae elongate and more or less parallel-sided; vestiture restricted to fine hairs or setae; only very lightly pigmented or sclerotized; only very lightly pigmented. The antennae 3 segmented. Frontoclypeal suture between frons and clypeus indistinct or absent. The labrum and head capsule completely fused, with no suture apparent. Apices of the mandibles with a single lobe or tooth. The maxillary palps 4 segmented. The labium without ligula between the palps. The labial palps 4 segmented. The mesothoracic legs with 1 movable claw. Tergum 9 of the abdomen entirely dorsal.

The larvae aquatic. The abdominal apex with a respiratory chamber, formed from the 8th and 9th terga and enclosing a pair of enlarged spiracles. Abdominal tergum 8 without amature. The larvae predacious.

Worldwide and British representation. 1 species in Britain (H. fuscipes). Recorded from Scotland, Northern England, South-west England and Wales, South-eastern England, and Ireland.

Classification. Suborder Polyphaga; Infraorder Staphyliniformia; Superfamily Hydrophiloidea; Hydrophilidae; Subfamily Hydrophilinae.

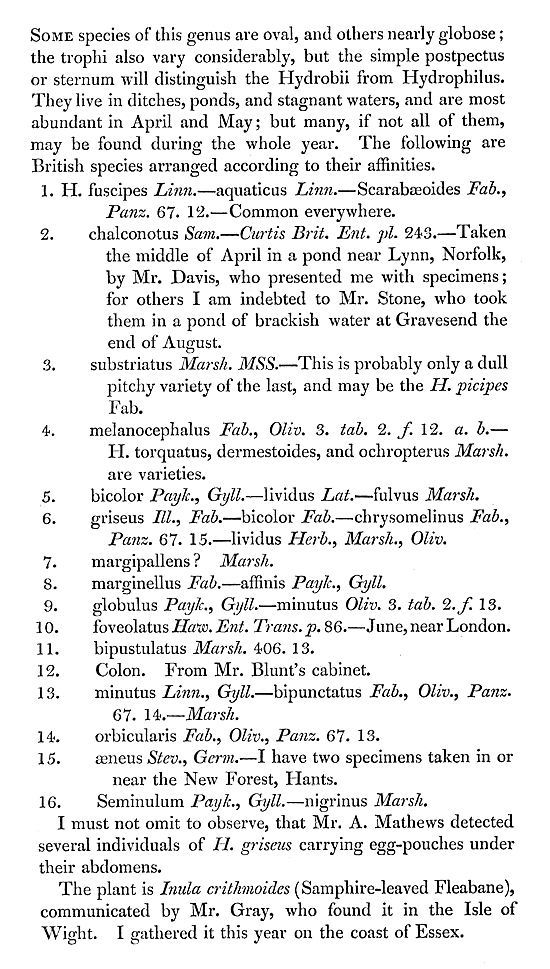

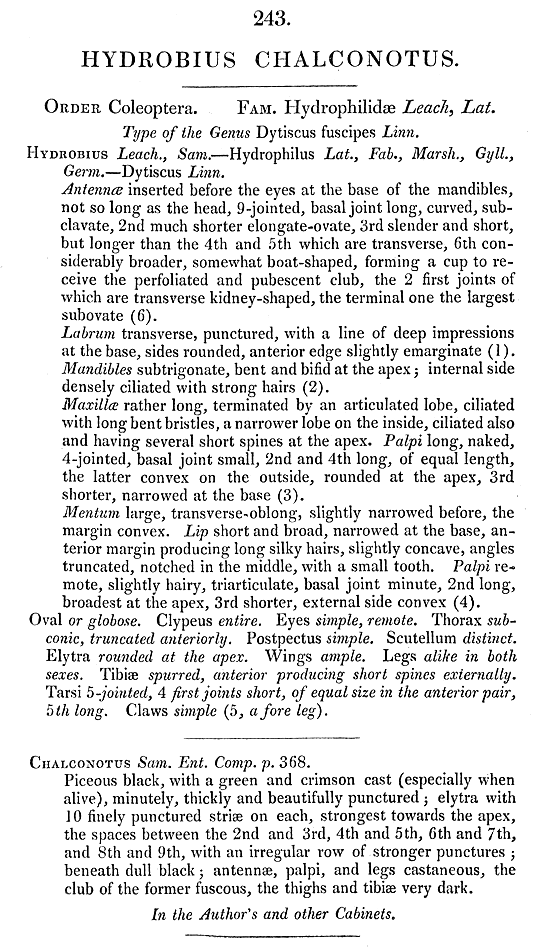

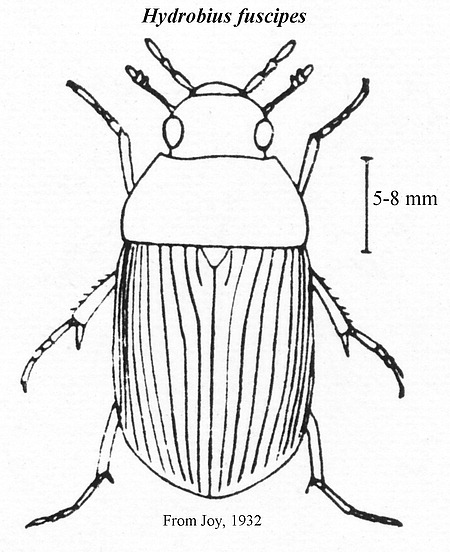

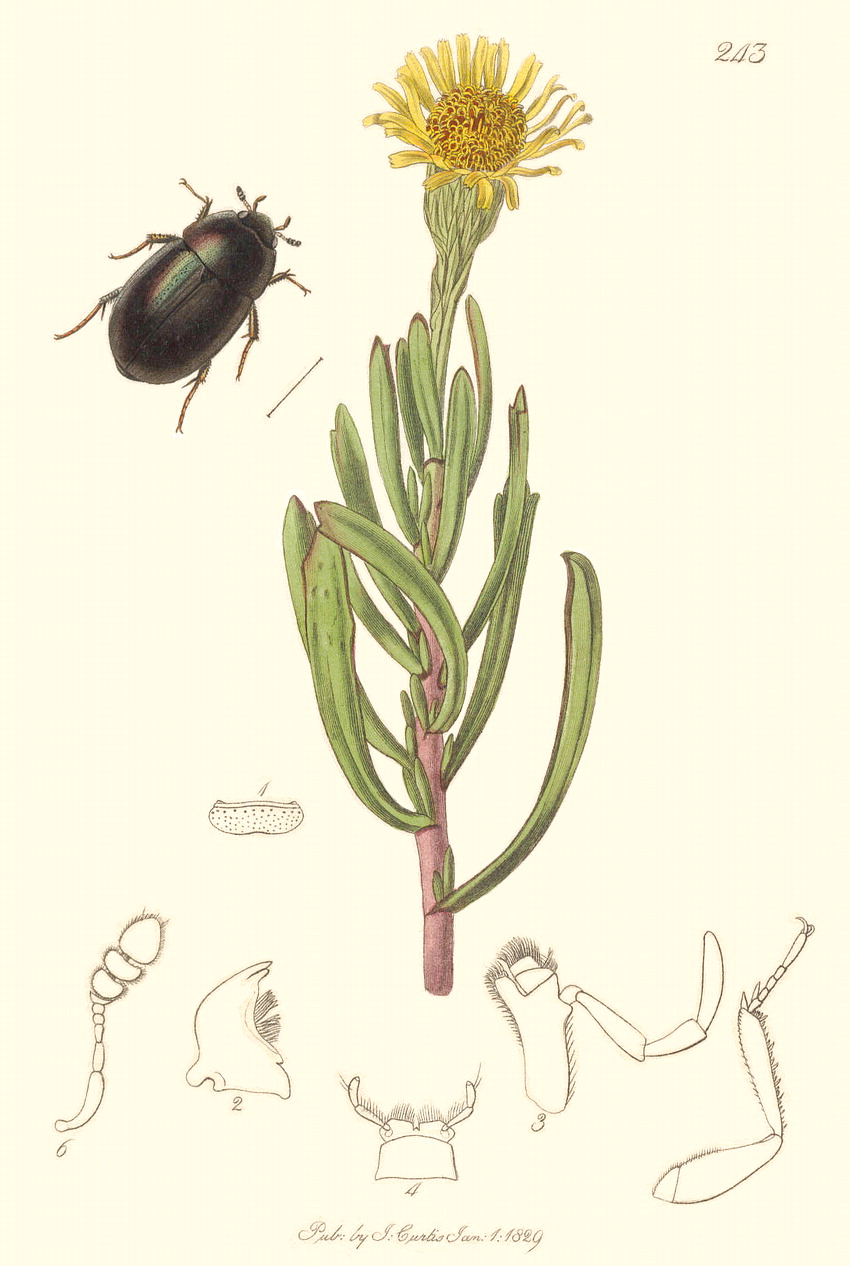

Miscellaneous. • Hydrobius fuscipes (Salt-water Hydrobius: B. Ent. 243). • Hydrobius fuscipes: B. Ent. 243, legend+text. • Hydrobius fuscipes: B. Ent. 243, text cont.. • Hydrobius fuscipes (from Joy, 1932).

To view the illustrations with detailed captions, go to the interactive key. This also offers full and partial descriptions, diagnostic descriptions, differences and similarities between taxa, lists of taxa exhibiting or lacking specified attributes, and distributions of character states within any set of taxa.

Cite this publication as: ‘Watson, L., and Dallwitz, M.J. 2003 onwards. British insects: water beetles. Version: 18th September 2012.’.
